Wheeled mobile drilling rig

Category：

Geological exploration drilling rig

Keywords：

Core drilling rig

Tel：

+8615376211860

Related Products

The main features of wheeled geological exploration drilling rigs include:

1. Crawler design: The crawler chassis has good passability and adaptability, and can operate in various complex terrains and harsh environments.

2. Versatility: Crawler geological exploration drilling rigs can be used for geological exploration tasks such as core drilling, cuttings drilling, hydrogeological surveys, and groundwater resource surveys.

3. Efficient and stable drilling performance: Equipped with advanced drilling systems and hydraulic control technology, the drilling performance is efficient and stable, and drilling operations can be completed quickly and accurately.

4. Flexible and adjustable drilling parameters: Drilling parameters can be adjusted according to specific operation needs, including drilling speed, drilling pressure, speed and other parameters to meet drilling requirements under different geological conditions.

5. Safe and reliable: The equipment is equipped with safety protection devices and emergency shutdown devices to ensure the safety of operators and equipment.

6. Easy operation: The design is simple and the operation interface is friendly. Operators can quickly master operating skills after simple training.

7. Convenient maintenance: The equipment has a reasonable structure and convenient maintenance, which extends the service life of the equipment and reduces maintenance costs.

8. Strong adaptability: crawler geological exploration drilling rigs are suitable for various geological conditions and operating environments, including different terrains and climatic conditions such as mountains, plains, and deserts.

Crawler geological exploration drilling rigs are widely used in geological exploration, water resources exploration, engineering surveys and other fields, and have received widespread attention and recognition from users.

Main technical parameters:

Model XYD-130 XYD-180 XYD-200

Drilling depth

(m) 130 180 200

Drilling diameter

(mm) 220 220 325

Final hole diameter

(mm) 75 75 75

Drill rod diameter

(mm) 42-60 42-60 42-60

Drilling angle

(°) 90-75 90-75 90-75

Matching power

(kW) 13.2 13.2 15

Weight

(kg) 3350 3400 3600

Drilling rig size

Length*width*height

(mm) 3.8x1.95x2.7 3.8x1.95x2.7 3.8x1.95x2.7

Vertical axis speed

(r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557

Vertical axis travel

(mm) 450 450 450

Track specifications

(mm) 350x90x48 350x90x48 350x90x48

Climbing angle

(°) 20° 20° 20°

Travel speed

(km/H) 10 10 10

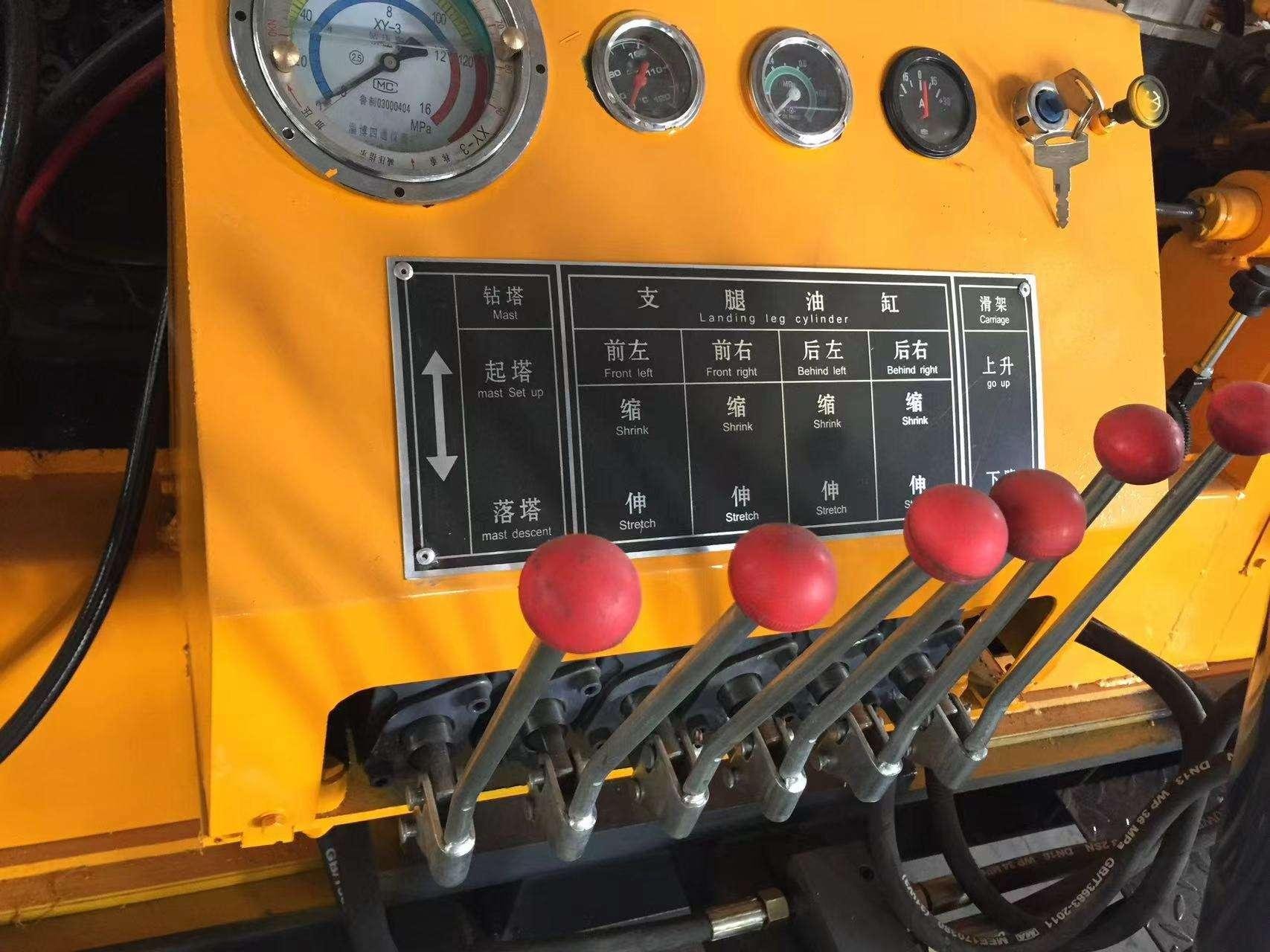

Hydraulic outriggers

Height (mm) 1300 1300 1300

Rated load

(ton) 2 2 5

Drilling tower structure Full hydraulic Full hydraulic Full hydraulic

Effective height

(m) 6 6 6

Flow rate

(L/min) 160 160 160

Maximum pressure

(MPa) 1.3 1.3 1.3

Number of round trips

(times/min) 165 165 165

Straw

Diameter (mm) 51 51 51

Maximum water output

Diameter (mm) 32 32 32
