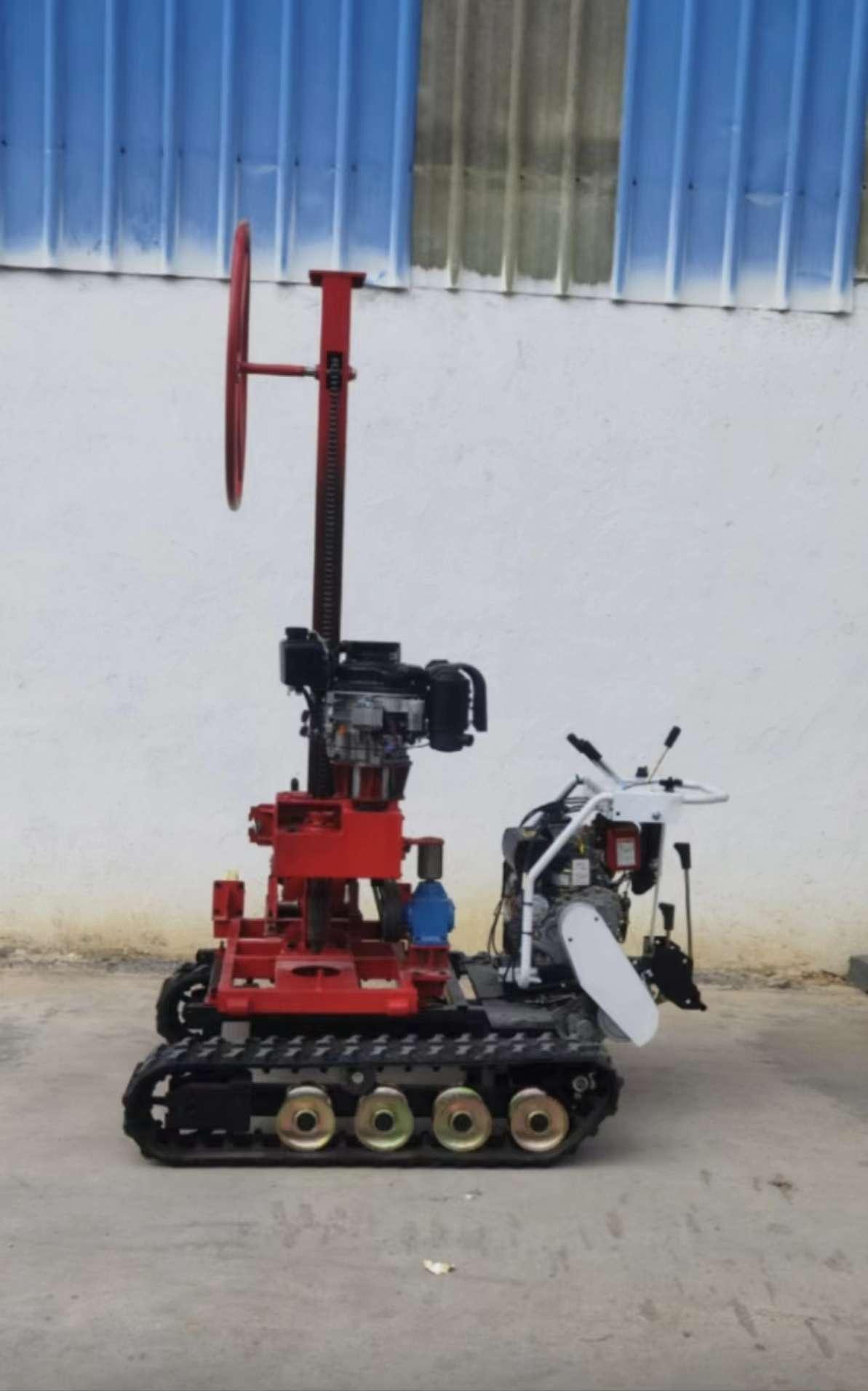

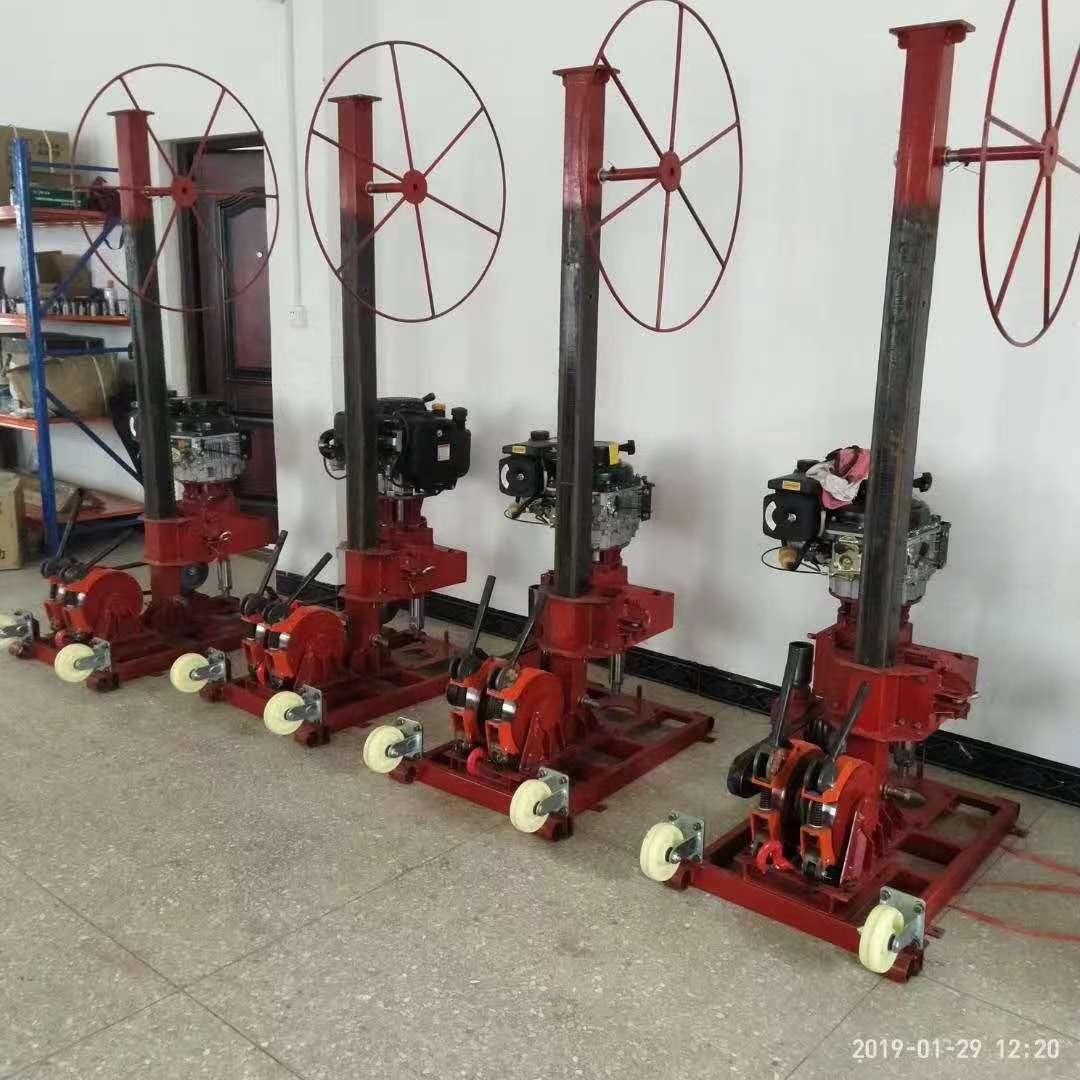

1. Introduction to ZT-40 lightweight geological engineering drilling rig

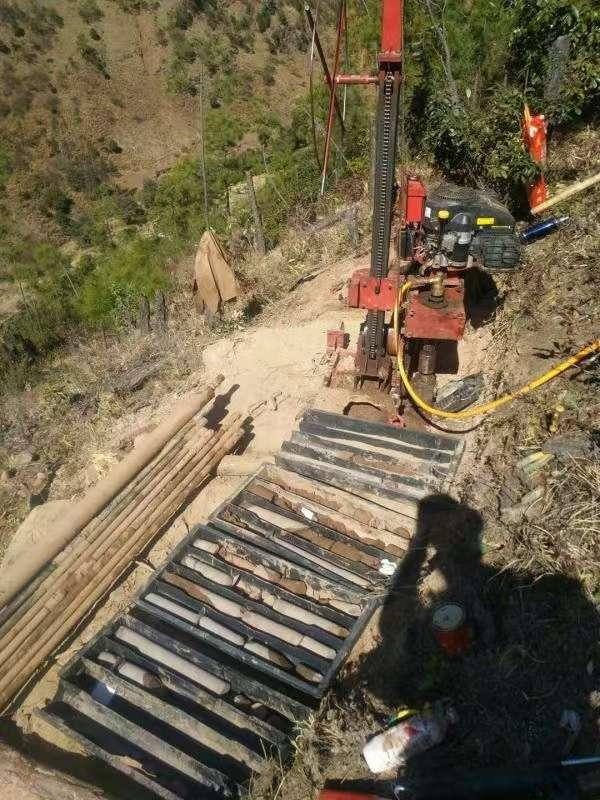

The ZT-40 lightweight core drilling rig is a lightweight multi-functional micro engineering drilling rig. It is suitable for various geological surveys, drilling industries and various drilling constructions. It brings great convenience to field exploration and construction and is widely used in industry and civil applications. Exploration drilling, advanced drilling, grouting drilling, embedded parts guide holes, geophysical exploration holes, and water conservancy inspection holes in the construction, bridge, railway, highway, hydropower and other industries.

The ZT-40 lightweight geological engineering drilling rig can be equipped with optional power, please specify this when purchasing.

2. Characteristics of ZT-40 lightweight geological engineering drilling rig

1. This drilling rig is equipped with a winch, making it easy to lift the drill in geological drilling;

2. The winch can be used with a heavy hammer to carry out standard penetration, soil acquisition and sounding.

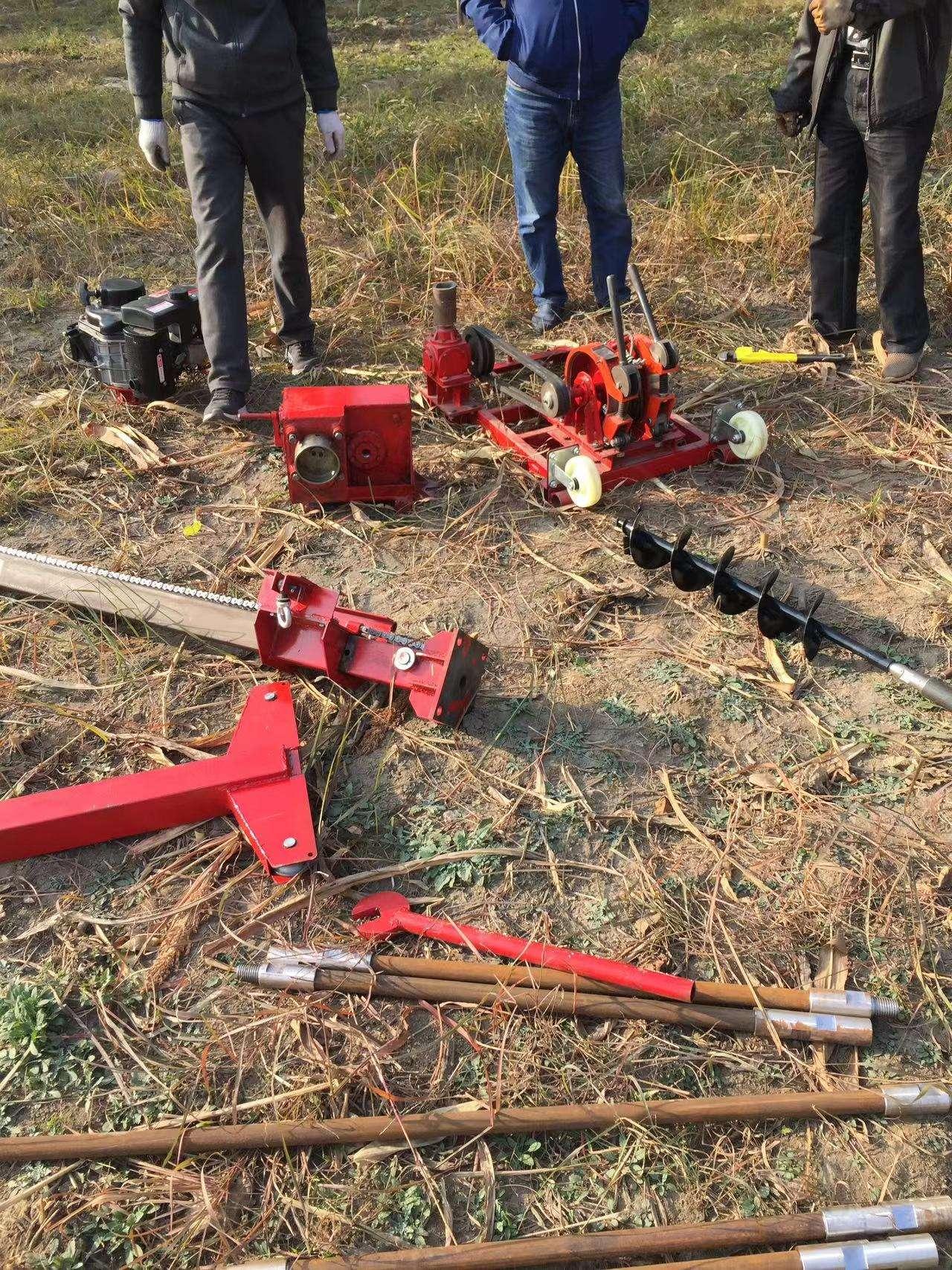

3. Reasonable design, compact structure, easy disassembly and assembly, small size, light weight, and easy transportation make field survey and construction safe and convenient.

3. Parameters of ZT-40 portable geological engineering drilling rig

ZT-40 lightweight geological engineering drilling rig

Drilling diameter (mm)φ46～φ110

Drilling depth (m)

Soil layer φ110: 15~20 meters;

Rock φ91: 20~25 meters;

Rock φ75: 25~30 meters;

Rock φ60: 25~30 meters;

Rock φ46: 40~50 meters.

Drill pipe diameter (mm) 30mm

Torque (N.m) 180 (slow gear)

Overall dimensions (L*W*H)

670*1200*3800 (highly customizable)

Drilling rig weight after assembly (KG)

130KG (can be disassembled)

power

6KW high speed: 3600r/min

4. ZT-40 lightweight geological engineering drilling rig configuration list

Serial number Name Specification Unit Quantity Remarks

1 Base QBZ-50 pcs 1 Geology

project

drilling rig

2 winch piece 1

3 Drilling Tower Piece 2

4 manual turntable pieces 1

5 power pieces 1

6 Gearbox Part 1

7 drill pipes (including lock adapter) φ30*1000 pieces 15 drill pipes

8 drill pipe (including lock adapter) φ30*2000 pieces 5

9 heads φ58 male/38 female each 1 φ60

coring

drilling tools

10 core tubes φ58*800 pieces 1

11 core tube φ58*1500 pieces 1

12 diamond drill bits φ60 pcs 1

13 heads Φ73 male/38 female 1 φ75

coring

drilling tools

14 core tubes φ73*800 pieces 1

15 diamond drill bits Φ75 pcs 1

16 fork tools

17 forks

18 free pliers

19 Skeleton oil seal 2 consumable parts

20 clutch discs 1

(If you need a high-pressure pump and high-pressure water pipe, please specify separately)
