Blasting Drill

It is mainly used for drilling and blasting holes in hydropower projects, open-pit mining, road construction, and national defense projects.

Category：

Soil sampling drilling rig

Keywords：

Tel：

+8615376211860

Related Products

Main features of the drilling rig:

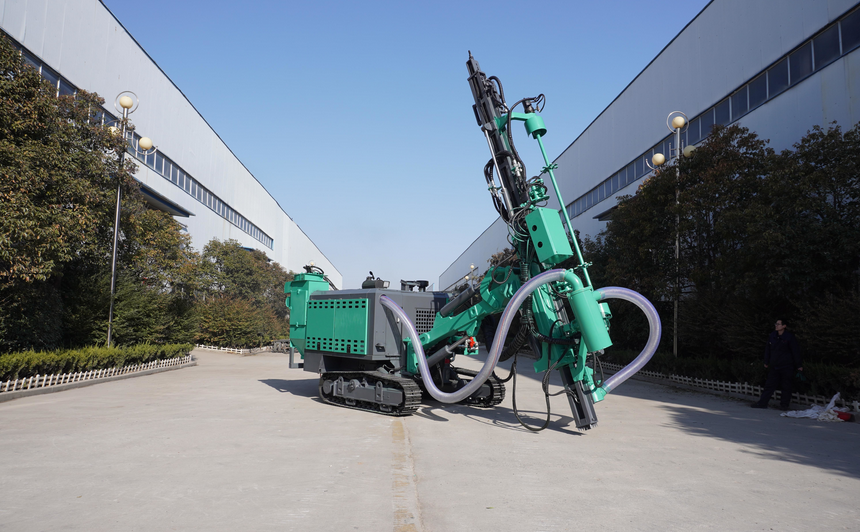

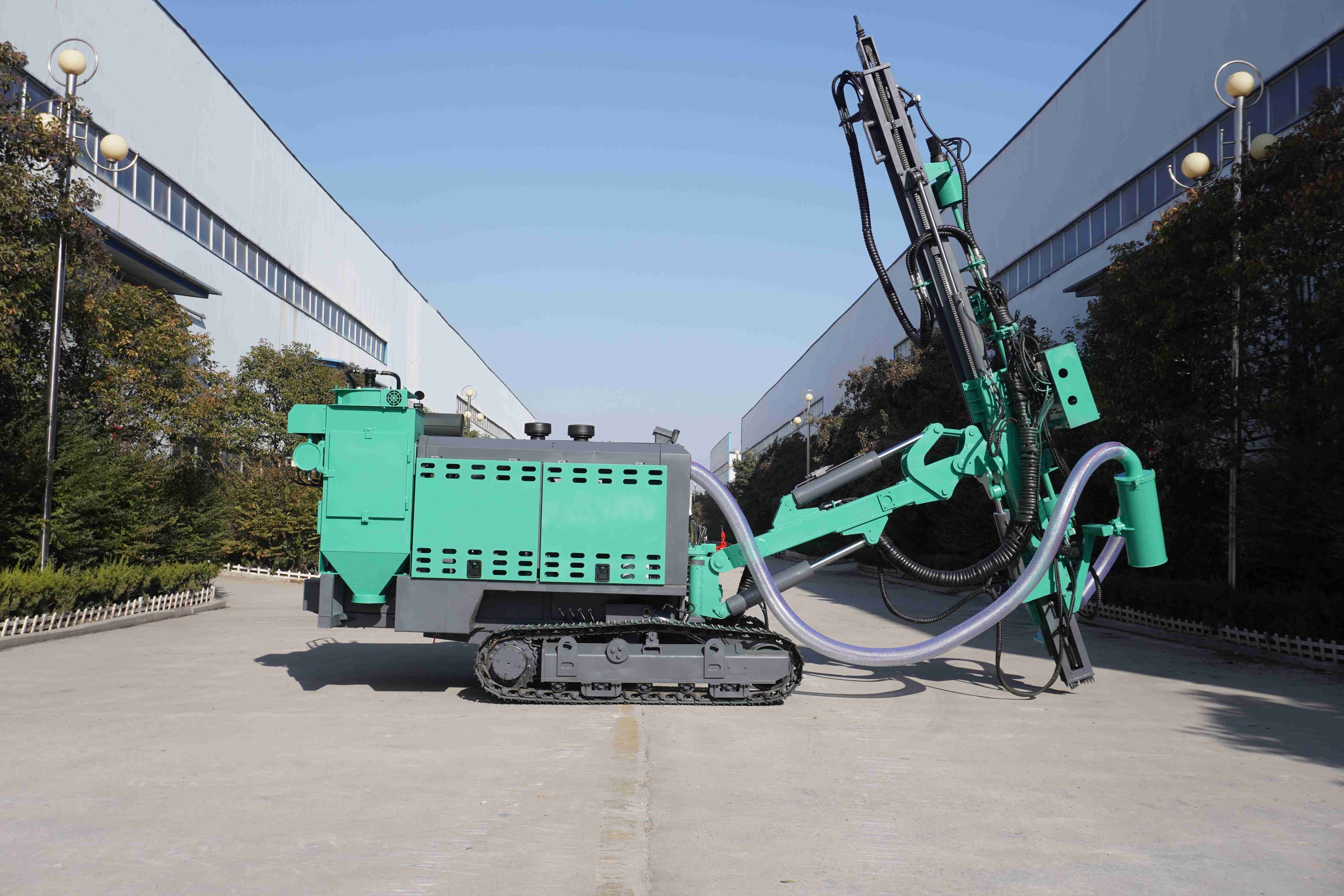

The 452H crawler hydraulic down-the-hole drilling rig has a fully optimized structure, lower footage cost, and more user-friendly design. It uses a diesel engine (motor)-hydraulic oil pump group as the power unit, and the hydraulic motor realizes auxiliary actions such as drilling rig rotation, propulsion, lifting, walking, and hydraulic cylinder swing angle positioning.

Mainly used for drilling and blasting hole operations in hydropower projects, open-pit mining, road construction, and national defense projects.

Technical parameters

Item Unit Parameter

Drilling parameters

Hole range & depth Drilling diameter mm 90-130

Drilling depth

Max. hole depth m 24

Drilling pipe specifications

Drilling pipes mm Φ68*3000

Number of pipes / 6+1

Of changing pipe / Automatic

Impactor specifications

DTH hammer inch 3.5"

Engine

Engine model

Model / YCA0724-T300

Rated power/ rotation speed kW/rpm 176/2200

Fuel tank capacity

Fuel tank capacity L 250

Compressor

Air comprosser producer / BSC

Rated air flow

Air flow at normal working pressure m³/min 15

Max. air pressure

Max. air pressure bar 19

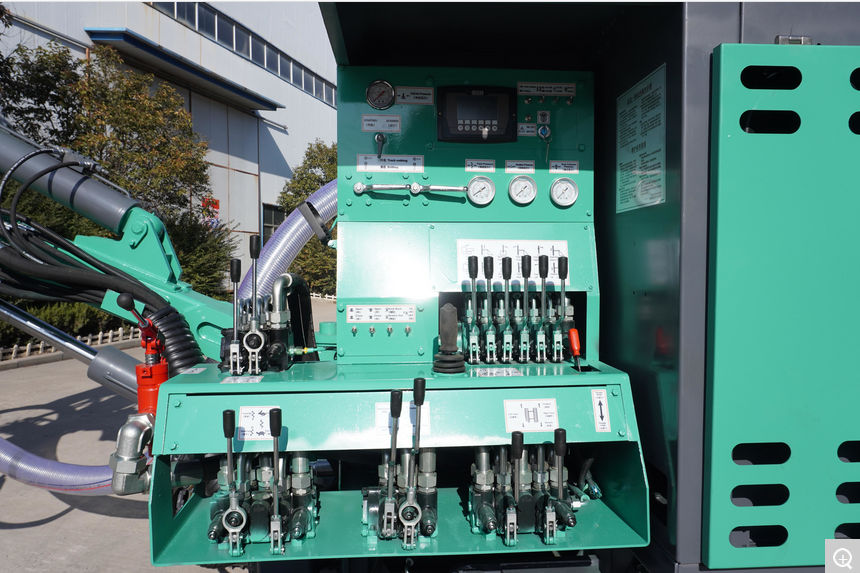

Hydraulic system

Hydraulic system Main hydraulic pump max. pressure MPa 25 Main pump flow ml/r 32 Auxiliary pump flow ml/r 32+32 Rotary head Max. torque N.m 1600 Rotation speed rpm 0-135 Propeller Feed mode / hydraulic cylinder + chain Travel stroke mm
