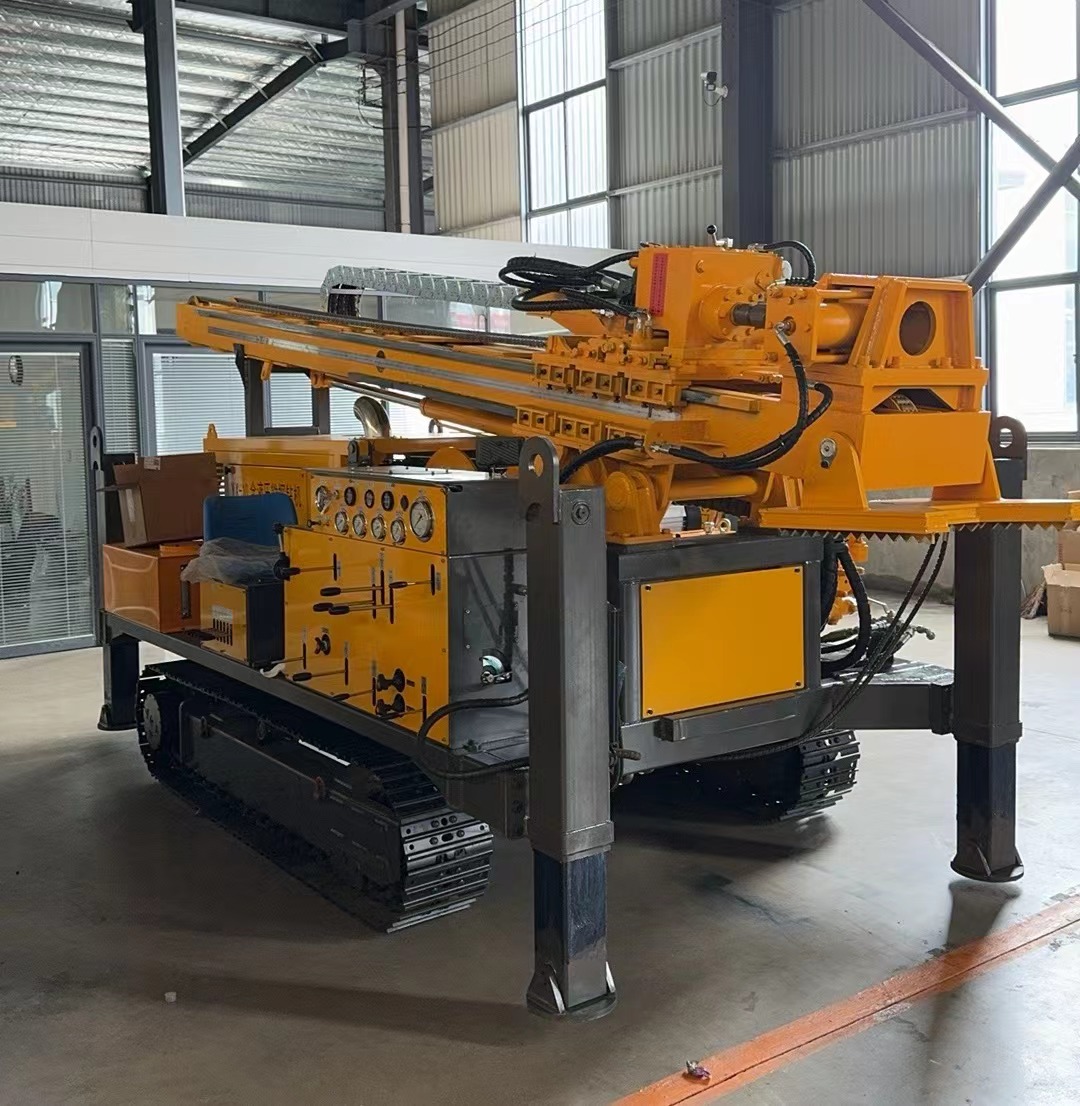

NQ/NTW Core Drilling Rig

The fully hydraulic core drill is a kind of equipment for coring and drilling in solid ore deposits. It adopts hydrostatic transmission to reduce the complicated mechanical transmission chain. It has the characteristics of light weight, high efficiency and simple operation.

Category：

Diamond Mining Drill Rig

Keywords：

Core drilling rig

Tel：

+8615376211860

Related Products

Portable Fully Hydraulic Core Drilling Rig YX-3

YX-3 portable core drilling rig is suitable for medium-deep hole rope coring drilling. It has a lightweight modular design and can be carried manually.

1. The drilling rig adopts a Kubota diesel engine full hydraulic drive mode.

2. The drilling rig can be mechanically two-speed plus stepless speed regulation, and the maximum torque can reach 800N.m.

3. It is driven by an axial piston pump and a bevel axis piston motor.

4. It is equipped with a lateral translation mechanism for the power head, and the mast can slide as a whole by using a cylinder to rise and fall, and can be used for drilling within the range of 0-90°.

Technical parameters

Drilling rig model

YX-3

Drilling capacity

BTW (m)

400

NTW (m)

300

HTW (m)

100

PQ (m)

Hydraulic system

Rated pressure MPa

26+26

Cooling method

Water cooling

Engine parameters

Model

Kubota four-cylinder

Rated power Kw

49.2*1

Rated speed rpm

2700

Power head parameters

Maximum torque N.m

800

Maximum speed rpm

1100

Feed stroke m

1800

Through hole diameter mm

Lifting force kN

100

Thrust force kN

Rope core winch parameters

Rope capacity m

400

Lifting force kN

Lifting speed m/min

110

Wire rope diameter mm

Mast parameters

Total height/m

5.8

Drilling angle °

0-90

Sliding stroke mm

Gripper parameters

Through hole 130mm

Track parameters

Maximum climbing angle °

30 (optional)
