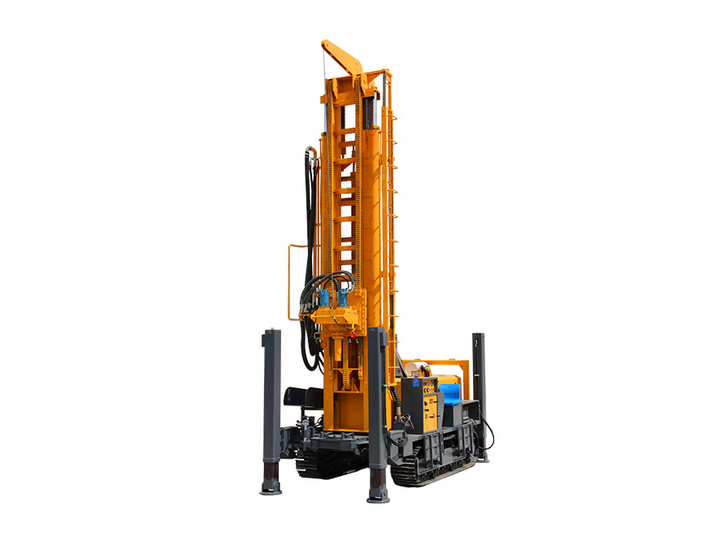

Well drilling rig

A device for drilling water wells

Category：

Water well drilling rig

Keywords：

Well drilling rig

Tel：

+8615376211860

Related Products

Features of water and gas dual-purpose crawler-type 800-meter deepwater drilling rig:

1. Equipped with 194KW Cummins brand 6-cylinder turbocharged engine, which has strong power and long service life;

2. Patented design of composite boom, double cylinder lifting, strengthened tower;

3. (Oil pump imported from Italy) 3-link oil pump, equipped with foam pump, winch, multi-function generator, front outrigger swing arm cylinder;

4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

5. Large drilling diameter, deep drilling and fast advancement speed

6. Drilling rig chassis: Reinforced steel crawler tracks, large chassis, strong and durable, heavy load-bearing, wide chain plate, large tonnage.

7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.

8. The independent cooling dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. Long engine life

9. Equipped with dual systems: 1. Aerodynamic system with air compressor 2. Mud pump system with mud pump

Overall machine weight (T)

The weight 13 drill pipe diameter (mm)

Drill pipe diameter Φ102 Φ108 Φ114 Φ117

Drilling diameter (mm)

The hole diameter 140-400 drill pipe length (m)

Drill pipe length 1.5m 2.0m 3.0m 6.0m

Drilling depth (m)

Drilling depth 800 Lifting force (T)

Rig lifting force 36

One-time advancement length (m)

One-time advance length 6.6 Rapid rise speed (m/min)

Rapid rise speed 20

Walking speed (km/h)

Walking speed 2.5 Fast forward speed (m/min)

Fast feeding speed 40

Climbing ability (Max.)

Climbing angles 30 Loading width (m)

Width of loading 2.95

Host power (kw)

Equipped capacitor 194 hoisting capacity (T)

Hoisting force of winch 2

Working air pressure (MPA)

Using air pressure 1.7-3.5 Rotary torque (N.m)

Swing torque 9000-14000

Air consumption (m³/min)

Air consumption 17-42 Dimensions (mm)

Dimension 6300×2300×2650

Rotation speed (rpm)

Swing speed 45-140 with impactor

Equipped with hammer medium and high wind pressure series

Medium and high wind pressure series

Footage efficiency (m/h)

The penetration efficiency 15-35 High leg travel (m)

High leg stroke 1.7

Diesel engine brand

The engine brand Cummins engine

Cummins engine
